Intensifier Panel

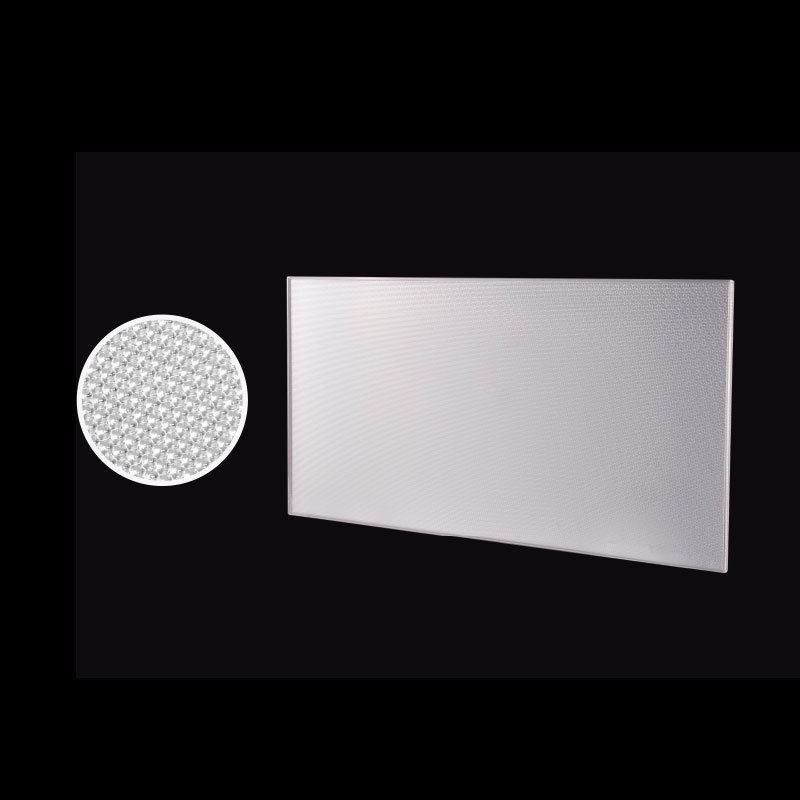

BREWSTER Intensifier Panels can be installed on LED panels to help focusing and intensifying light.
BREWSTER Intensifier Panels can be installed on LED panels to help focusing and intensifying light. Our BREWSTER Intensifier Panel can increase light output by up to 50% via its unique hexagonal pyramid micro-structures that help capturing light going off to the side and re-directing it in a more forward direction.
The patented micro-optics design of BREWSTER Intensifier Panels can significantly decrease the Unified Glare Rating (UGR) by shaping the light transmission, reducing the light above 72 degree, and producing a soft, even beam. For the BREWSTER Intensifier Panels, both standard and customized sizes are provided. Intensifier panels with different surface patterns such as prism, microlens, and microcones are also available to satisfy specific needs.
Parameter
| Thickness | Tolerance | Metarial | Appearance | Beam Angle |
| 3.1mm, 5.1mm | ±0.5mm | Acrylic（PMMA） | Hexagonal-pyramid， Anti-glare | 72° |
Transmission：Increase the illumination by more than 50%.
Illumination Parameter
| Item No. | Specifications (mm) | 3m/9.8ft | 5m/16.4ft | 7m/23.0ft | 9m/29.5ft | ||||
|---|---|---|---|---|---|---|---|---|---|
| 3200K | 5600K | 3200K | 5600K | 3200K | 5600K | 3200K | 5600K | ||
| KIT-30-5 | Light Intensifier Panel 367*314*5 （14.45×12.36 inches） | 886lx 82fc | 908lx 84fc | 319lx 30fc | 327lx 30fc | 163lx 15fc | 167lx 16fc | 98lx 9fc | 101lx 9fc |
| KIT-60-3 | Light Intensifier Panel 655*310*3 （25.79×12.2 inches) | 1981lx 184fc | 1942lx 180fc | 713lx 66fc | 699lx 65fc | 364lx 34fc | 357lx 33fc | 220lx 20fc | 216lx 20fc |
* Custom sizes available

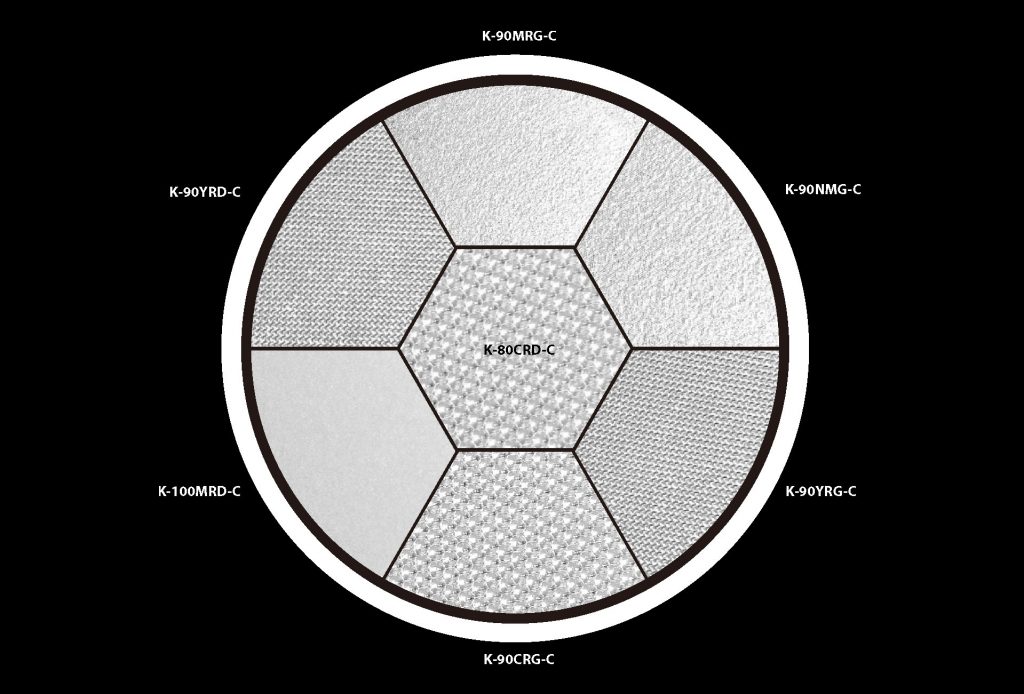

| Item No. | Material | Thickness丨Multlpe Transmlssion | Surface |
|---|---|---|---|
| K-90MRG-C | PC, PMMA |
| Microlens |
| K-90NMG-C | PC, PET |
| Prism |
| K-90YRG-C | PC, PET |
| Micropyramid |
| K-90CRG-C | PC, PMMA |
| Microlens |
| K-100MRD-C | PC, PMMA | 1.5mm | Microlens |
| K-90YRD-C | PC, PMMA | 1.5mm | Micropyramid |
| K-80CRD-C | PC, PMMA | 1.5mm | Microlens |
* Customized size is available.
